Asset Management

Electrical diagnostic testing

Preventive and predictive maintenance and specialized testing to properly preserve your assets, extending their service life, keeping traceability of results and anticipating unnecessary corrective work. We diagnose every electrical device on the market.

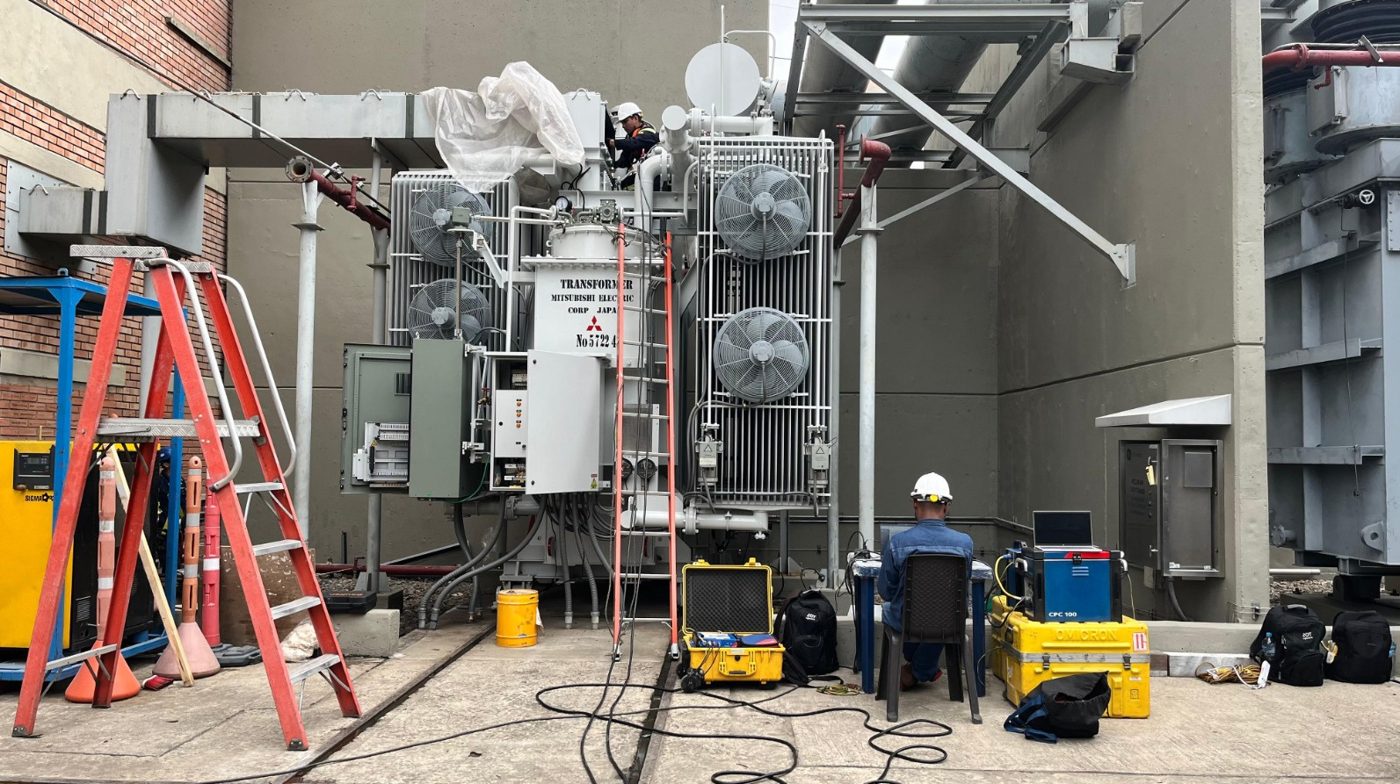

1Power transformer testing
📘 IEEE C57.152

Power Transformers

Maintenance and specialized electrical diagnostic testing using predictive and preventive techniques, saving costs on production downtime from unnecessary corrective work.

  • Winding resistance
  • Insulation resistance
  • Turns ratio (TTR)
  • Polarization index (PI)
  • Short-circuit impedance
  • Dielectric absorption ratio
  • Dielectric frequency response (DFR)
  • Power and dissipation factor
  • Dielectric oil analysis
  • Excitation current
EquipmentCPC 100TD12SB1FRANEO 800DIRANAMEGGER MIT1525

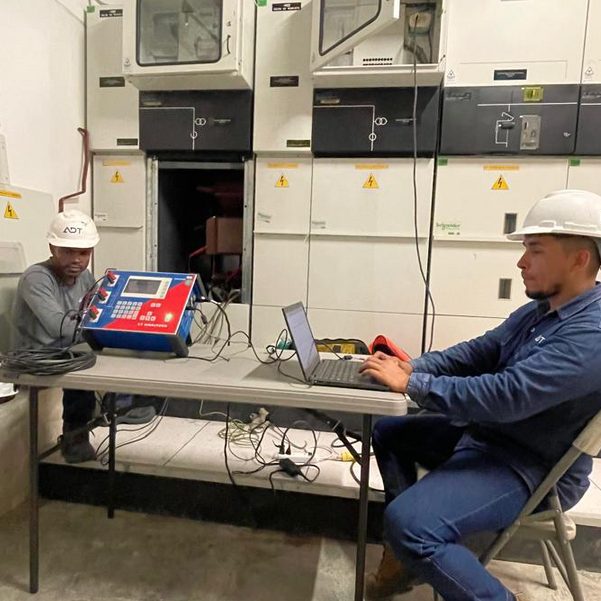

2CT VT instrument transformer testing with CT Analyzer
⚖ CREG 038 of 2014 · CNO Agreement 981

Instrument and Protection Transformers (CT · VT)

With CREG 038 of 2014 comes the need to perform routine testing on metering boundaries to guarantee correct measurement and device accuracy, in compliance with CNO Agreement 981.

  • Ratio error
  • Saturation curve
  • Phase displacement error (phase angle)
  • Burden measurement
  • Winding resistance
EquipmentVOTANO 100CT Analyzer

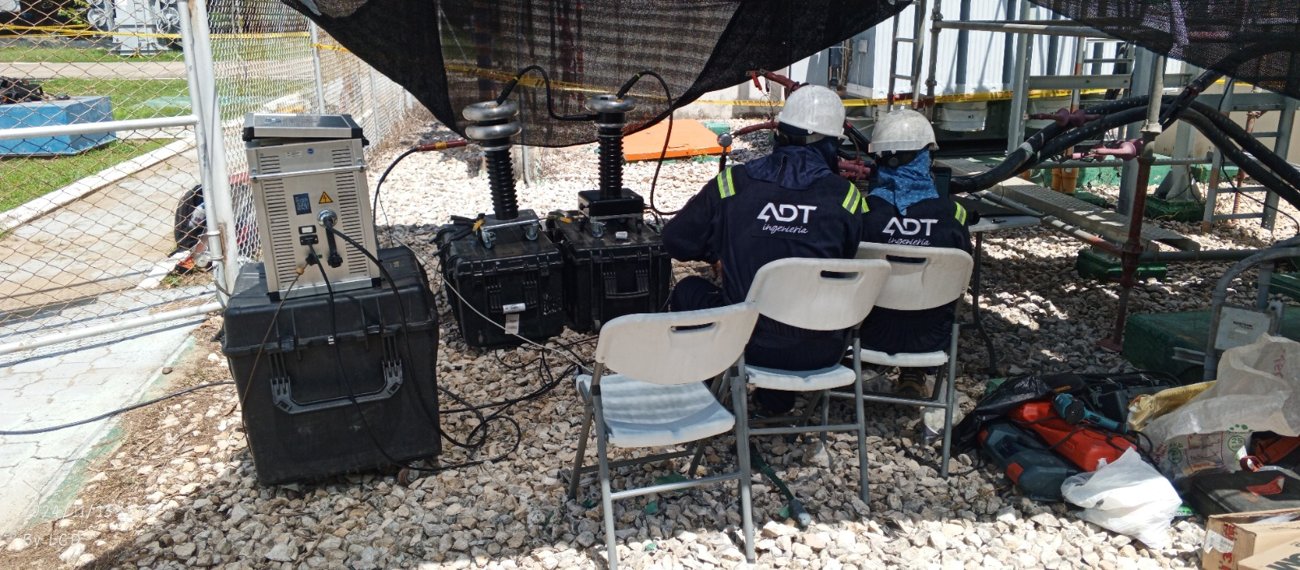

3VLF testing of medium- and high-voltage insulated cables by ADT technicians
📘 IEEE 400.2 · IEEE 400.3

Medium- and High-Voltage Insulated Cables

VLF + TD + PD tests performed at very low frequency (0.01 Hz to 0.1 Hz), a standardized and up-to-date method to assess cable condition in MV and HV networks. Unlike DC testing, it avoids insulation damage in aged extruded cables (XLPE and EPR).

  • VLF test (0.01 – 0.1 Hz)
  • Loss factor Tan Delta (TD)
  • Partial discharge (PD)
  • XLPE / EPR insulation diagnostics
EquipmentHVA60PDTD 60-2

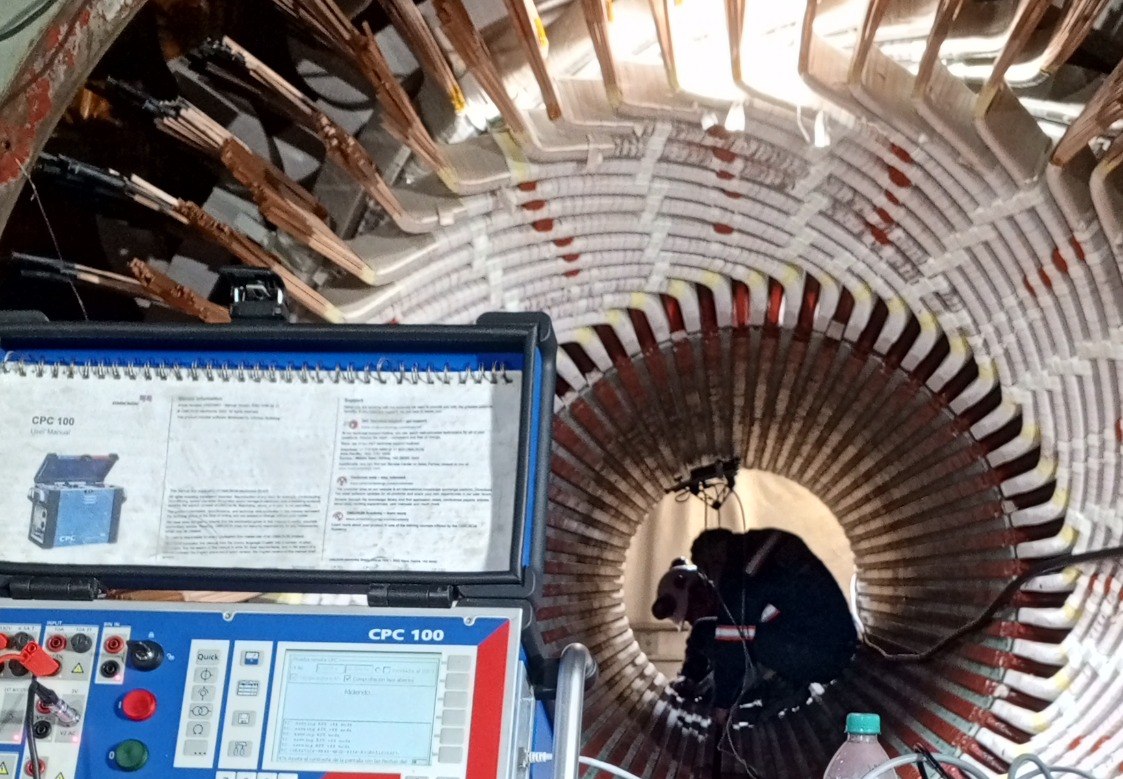

4Testing of rotating machinery, motors and generators with CPC 100 on the stator
📘 ANSI/NETA MTS · IEEE Std 56 · IEEE Std 62.2 · IEEE Std 112 · IEEE Std 286

Rotating Machinery (Motors and Generators)

Static and dynamic electrical testing of generators and electric motors to achieve the best reliability and statistical results, including electromagnetic imperfection testing (ELCID) of the stator core.

  • Insulation resistance
  • Polarization index
  • Winding resistance
  • Step voltage
  • Power / dissipation factor
  • Phase impedance
  • Motor current signature analysis (MCSA)
  • Eccentricity and unbalance analysis
  • Harmonic distortion
  • ELCID — stator core imperfections
EquipmentMIC-15K1E MAXMMR-650CPC 100SCU1 + RAA1

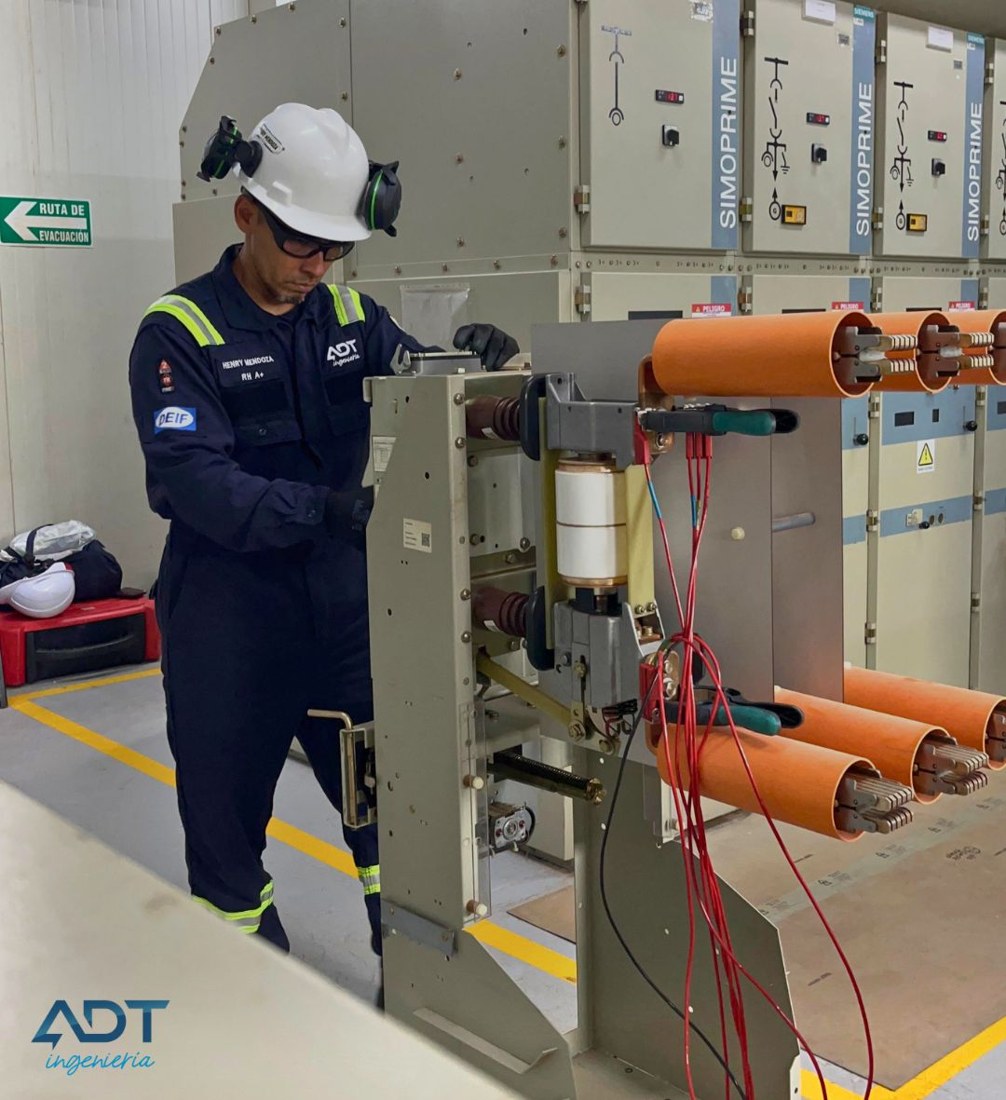

5Testing of SIMOPRIME medium-voltage switchgear by an ADT technician

Medium-Voltage Switchgear

Comprehensive diagnostics of medium-voltage cells and switchgear in step-down substations and distribution systems up to 36 kV, verifying insulation, contacts, switching operation and protection.

  • Insulation resistance
  • Power / dissipation factor
  • Contact resistance (micro-ohms)
  • Applied voltage (Hi-Pot)
  • Interlock and switching-operation checks
  • Busbar and disconnector testing
EquipmentCIBANO 500MEGGER MIT 1025

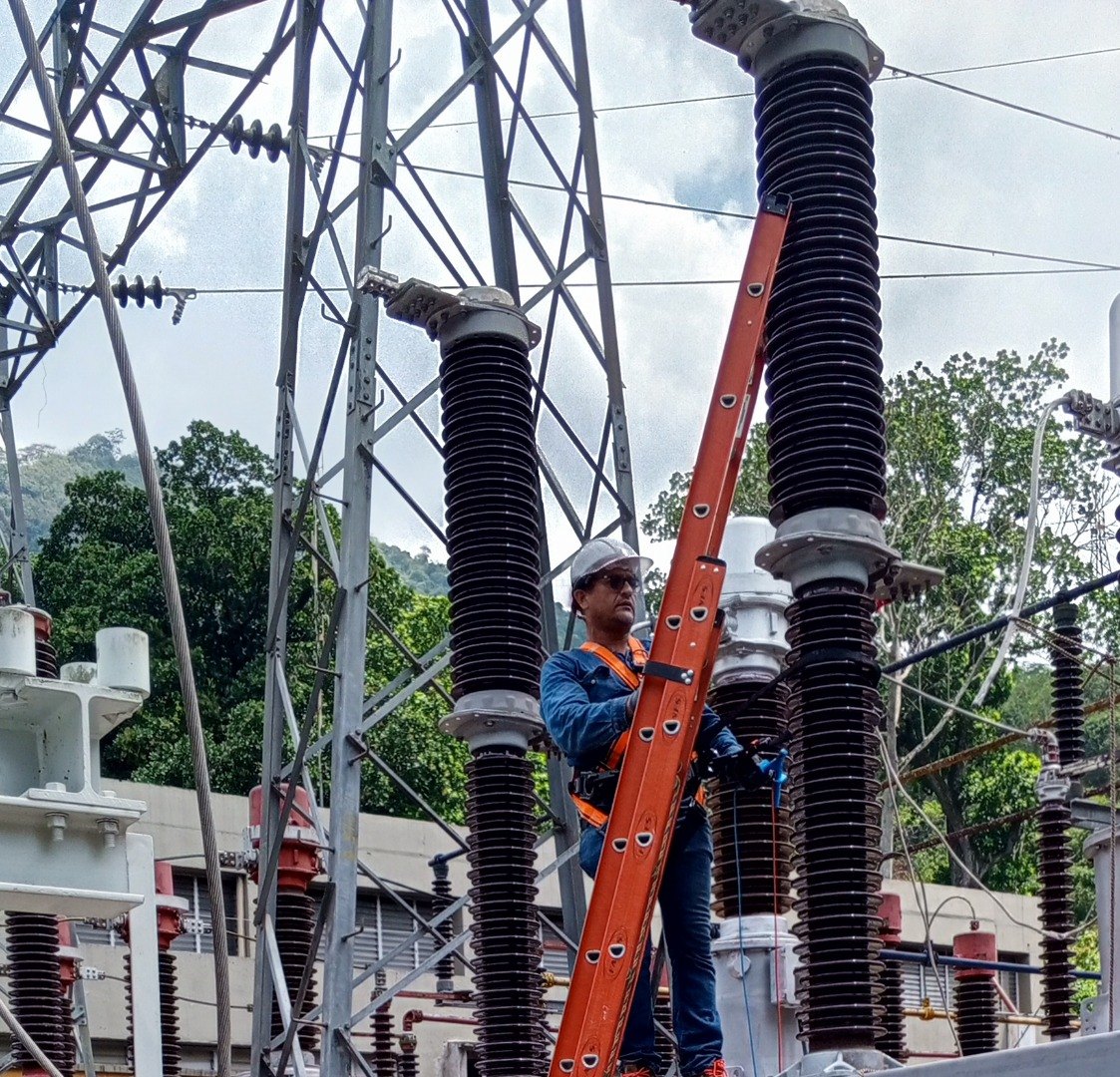

6Testing of circuit breakers, contactors and disconnectors with OMICRON in a substation

Circuit Breakers, Contactors and Disconnectors

Diagnostics of switching and protection equipment for low, medium, high and extra-high voltage, ensuring reliable performance in compliance with international standards across distribution and transmission networks.

  • Operating times (opening / closing)
  • Contact synchronism
  • Static and dynamic contact resistance
  • Insulation resistance
  • Trip and close coil analysis
  • Primary and secondary injection
EquipmentCIBANO 500CMC 356MEGGER MIT 1025

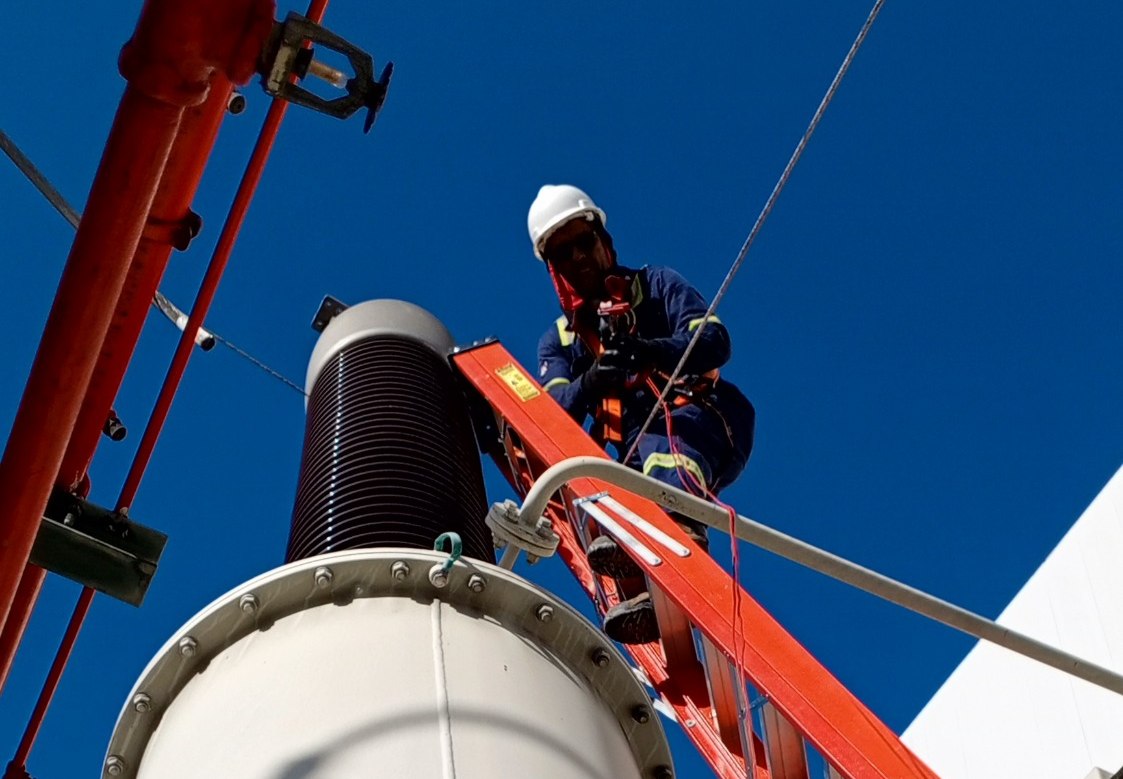

7Diagnostic testing of bushings in a substation
📘 IEEE C57.19 · IEC 60137

Bushings

Bushings are one of the most critical failure points of transformers and reactors. We diagnose their paper-oil insulation to detect moisture, contamination and aging before they lead to a catastrophic asset failure.

  • Power and dissipation factor (Tan δ)
  • C1 and C2 capacitances
  • Insulation resistance
  • Capacitance / potential tap test
  • Trending and comparison with nameplate values
EquipmentCPC 100CP TD12DIRANA
8Inspection and testing of insulators on lines and substations
📘 IEC 60168 · IEEE 4

Insulators

Inspection and testing of porcelain, glass and polymer insulators on lines, substations and suspension strings, to detect cracks, surface contamination, punctures and loss of dielectric capacity that compromise network reliability.

  • Insulation resistance
  • Applied voltage (Hi-Pot AC / DC)
  • Leakage current measurement
  • Infrared thermography of hot spots
  • Insulator string inspection
EquipmentHi-PotHIKMICROMEGGER MIT 1025

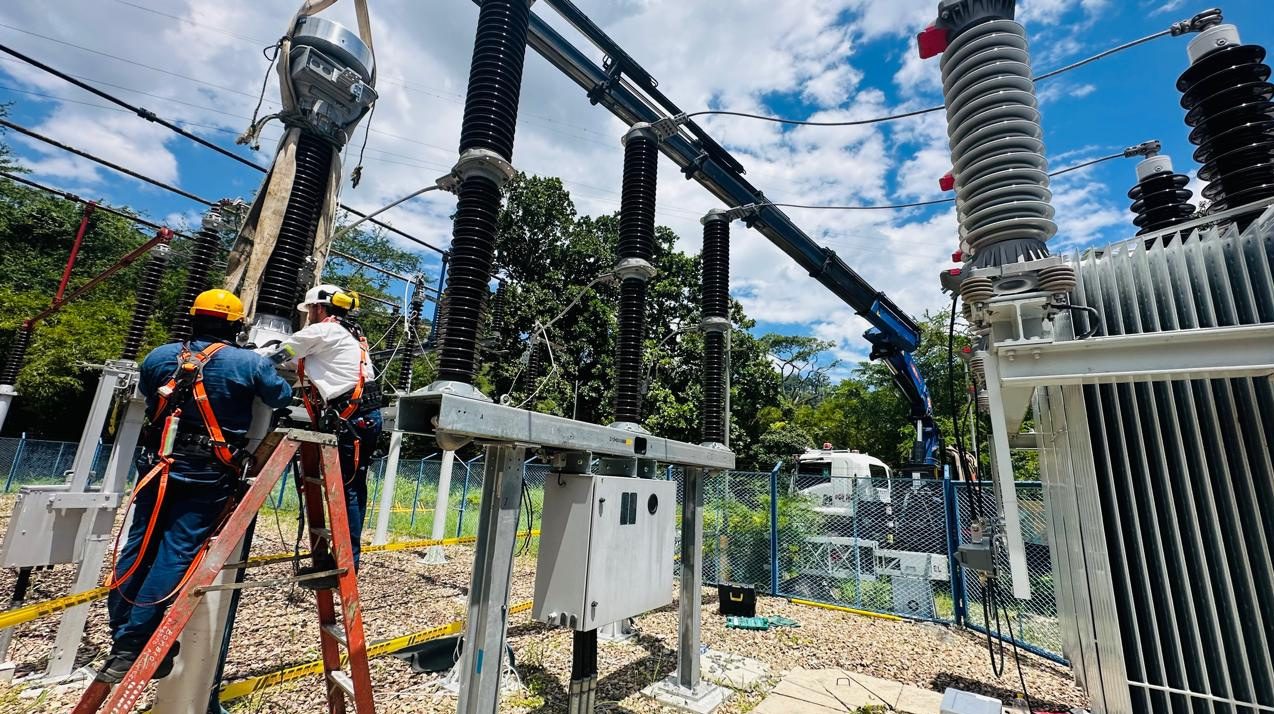

9Testing of surge arresters and lightning arresters
📘 IEC 60099-4 · IEEE C62.11

Surge Arresters (SPD / Lightning Arresters)

Surge arresters are the substation's first line of defense against overvoltages from lightning strikes and switching. We verify their condition to guarantee they operate when needed and to detect the silent aging of the varistors.

  • Total leakage current and resistive component
  • Insulation resistance
  • Power factor / losses
  • Infrared thermography
  • Reference voltage measurement
EquipmentCPC 100HIKMICROMEGGER MIT 1025
10Measurement of grounding systems
⚖ IEEE 80 · IEEE 81 · RETIE

Grounding Systems (GS)

Studies and measurements of the grounding system, essential for personnel safety, correct protection operation and equipment protection. We evaluate everything from soil resistivity to the integrity of the ground grid.

  • Soil resistivity (Wenner method)
  • Ground resistance (fall-of-potential / 62 %)
  • Continuity and equipotential bonding
  • Integrity of grids and connections
  • Electrode resistance measurement
EquipmentTelurómetro Metrel 3290MI 3295 GF

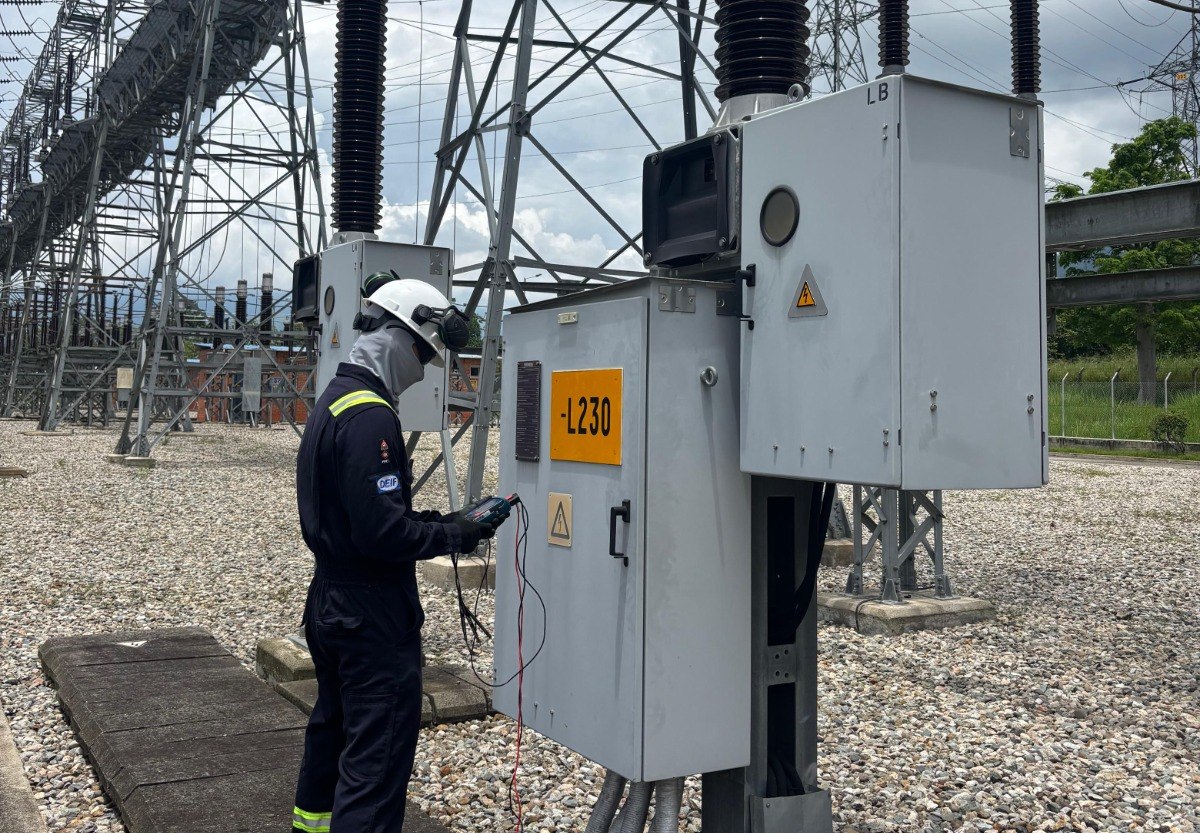

11Measurement of step and touch voltages in a substation
⚖ IEEE 80 · RETIE

Step and Touch Voltages

Measurement of step and touch voltages in substations, structures and energized areas to verify that, during a ground fault, people are not exposed to dangerous potentials. We identify and correct risks before an incident occurs.

  • Step voltage
  • Touch voltage
  • Ground potential rise (GPR)
  • Potential gradients
  • Verification against safety limits
EquipmentMetrel MI 3295 GFMetrel 3290

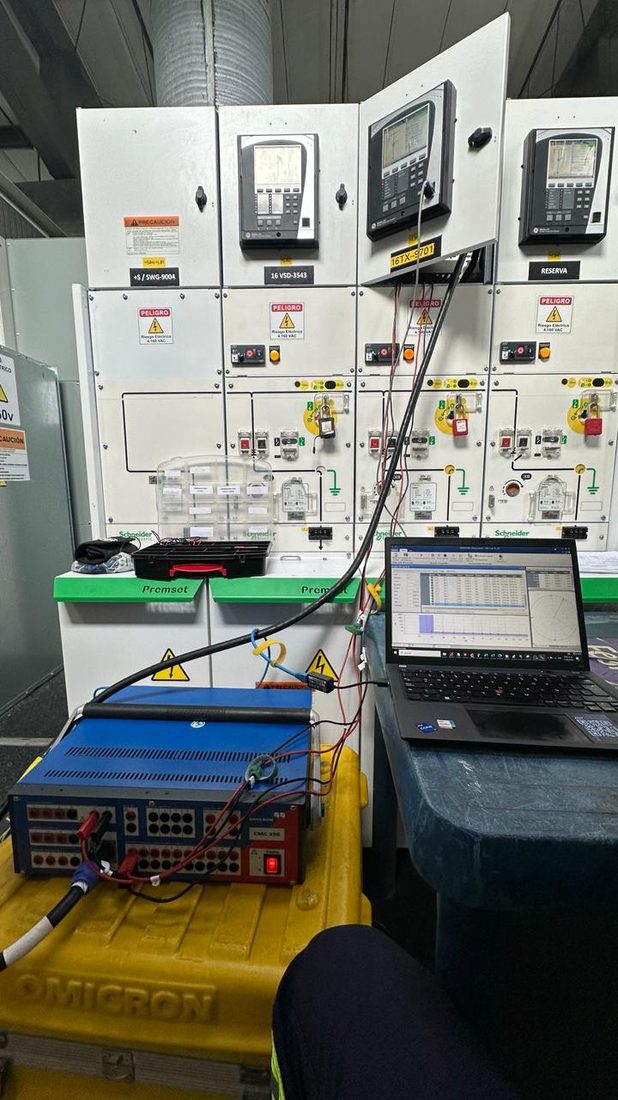

12Relay verification with secondary injection OMICRON CMC 356
⚖ RETIE · NTC 2050 · IEEE C37

Protection Verification (Relays)

We don't just test: we configure and verify. We handle the programming, parameterization and configuration of relays, and validate their behavior through secondary injection with the OMICRON CMC 356, checking curves, times and the coordination of the entire protection scheme.

  • Secondary injection (CMC 356)
  • Pickup and trip times
  • Function verification (50/51/67/87/27/59/81…)
  • Parameter review and adjustment
  • Protection coordination
  • End-to-end functional testing of the scheme
EquipmentOMICRON CMC 356
13Power quality analysis with Class A analyzers
⚖ IEEE 1159 · IEEE 519 · NTC 1340 · CREG 025

Power Quality Analysis

Monitoring of electrical parameters with certified Class A analyzers to identify disturbances that affect productivity: harmonics, voltage sags and swells, flicker, unbalance and low power factor. We deliver a diagnosis and concrete solutions that boost competitiveness.

  • Voltage, current and frequency logging
  • Harmonics and distortion (THD)
  • Voltage sags and swells
  • Flicker
  • Phase unbalance
  • Power factor and reactive energy
EquipmentClass A analyzers

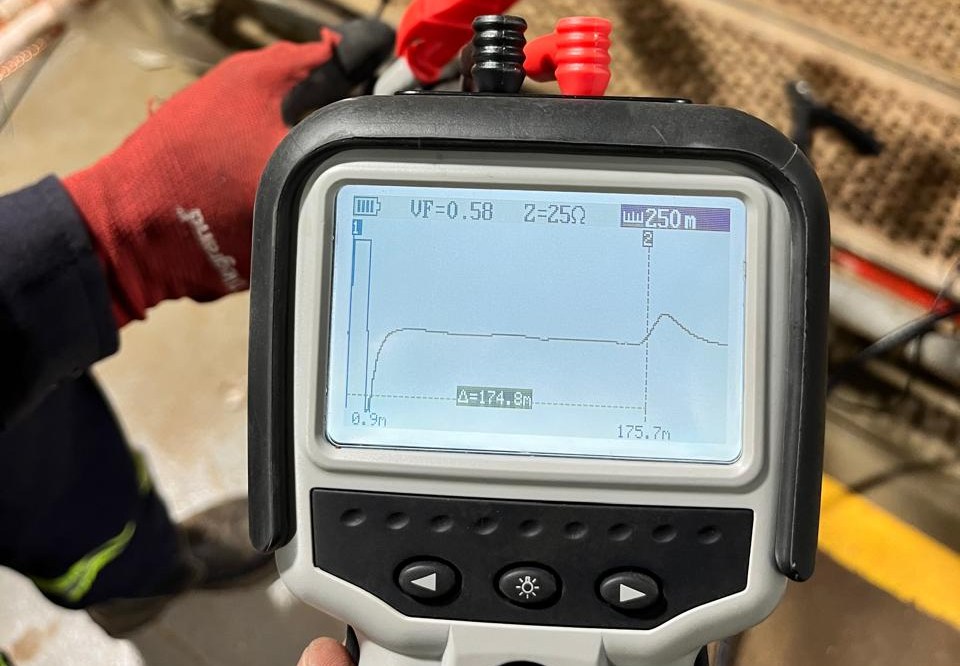

14TDR reflectometry of insulated cables with Megger TDR1000 in the field
📘 IEEE Std 1234

Reflectometry of Low- and Medium-Voltage Insulated Cables

Time-domain reflectometry (TDR) sends low-voltage pulses along the cable; wherever there is an impedance change —fault, splice, tap, open or short circuit, moisture— part of the pulse is reflected. By measuring the return time and the cable's velocity factor (VF), the distance to the point is located precisely. It is the ideal technique for fault pre-location and the verification of LV and MV cables, quickly and non-destructively.

  • Fault location and pre-location
  • Cable length measurement
  • Detection of splices, taps and terminations
  • Open and short circuits
  • Impedance changes and presence of moisture
  • Velocity factor (VF) adjustment by cable type
EquipmentMEGGER TDR1000/3P

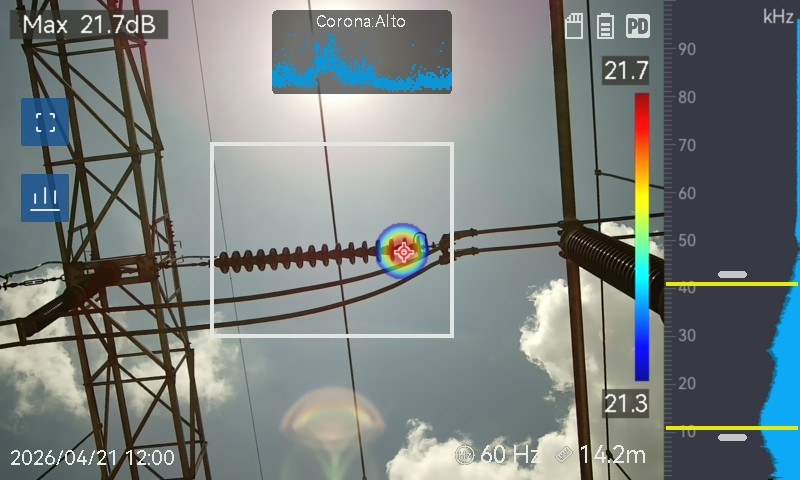

15Ultrasonic partial discharge detection with a HIKMICRO AI76 acoustic camera
📘 IEC 62478 · IEC 60270

Ultrasonic Partial Discharge Detection

Partial discharges —corona, surface, internal and floating— emit ultrasonic energy. With acoustic imaging cameras we visually detect and locate these emissions remotely and without contact, overlaying the acoustic map on the real image, to identify insulators, connections and equipment undergoing degradation before the failure occurs.

  • Corona discharges
  • Surface, internal and floating discharges
  • Remote, non-contact visual location
  • Inspection of insulators, lines and connections
  • Automatic detection at 50 / 60 Hz
  • Reports with acoustic analysis software
EquipmentHIKMICRO AI76
Coverage

We perform electrical testing on the following devices

Specialized diagnostics for all low-, medium-, high- and extra-high-voltage assets.
